TX-15/ 15in 2-way full range
 |
|
■ Passive mode with build-in crossover
■ Powerful & high SPL, long throw
■ Narrow profile enclosure
■ Space saving for mobile & storage
■ Weather resistant
■ Flexible rigging structure
System :
Single-amp/ bi-amp enclosure
Transducers/Power :
LF :
1x 15in- 450w/ 8 ohm
HF :
1x 3in - 80w/ 8 ohm
Fre. Response :
50Hz~18kHz
Xover :
By external processor
Low :
LPF- 1.2kHz / HPF- 50Hz
Hi :
LPF- 18kHz / HPF- 1.2kHz
Impedance :
8 ohm
Sensitivity :
98 dB ( 1w 1m)
Max. SPL :
130 dB
Dispersions :
60°x 40°( H x V )
Material :
13-ply 15mm birch wood
Finish :
Black texture paint

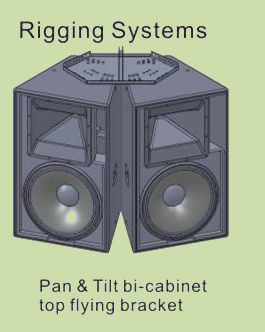

Rigging :
14x M10 suspension points
Connectors :
2x NL4 speakon
Dimensions :
476 x 762 x 443 mm
Net weight :
35 kgs
■ Small to big venue, fixed installation
■ Touring & performing art
■ Mobile and Live musical event
■ Houses of worship & theater
■ Hotel ballroom and conference
